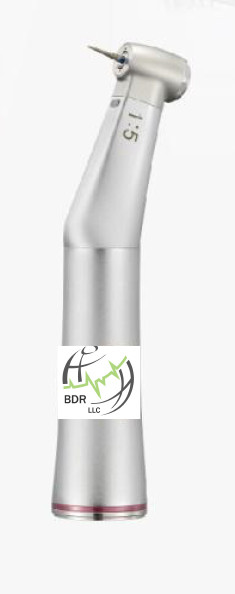

HANDPIECE 1:1 for Electric Motor with LED light 1:5 Angle

External Dental Handpiece Electric Motor includes 1:5 Angle with LED Light

Technical parameters:
Motor: brushless DC motor
Type: internal water spray
Application: dental restoration-dental calculus removal
Speed range: 2000-40000 rpm
Max torque: 3.5 Ncm
Torque control: no
Water flow: (0.2Mpa): ≥65ml/min
Temperature rise: 40000rpm running 3 min, no more than 10° higher than the room temperature
Noise: when the distance is 0.5m, the noise is lower than 45DB
Weight: 63.4g
Dimension: diameter 21mm*49mm
Light: LED
Bearing: lubricating free ball bearing
Disinfection: 135°C high temperature disinfection
Line installation: thread
Port: DC male connector 5.5mm*2.1mm
Dimension (L*W*H): 135*135*65mm
Voltage: DC 32V
Warranty: 6 months for the angle-handpiece and 1 year for the motor and micromotor with cable.

Product features

• The external dental handpiece electric motor is an original Swiss brushless DC motor of which the running noise is as low as 45dB while the output torque is up to 3.5N.cm. (The largest torque of the famous brand in Japan NSK is 3.4N.cm. And the torque of the others in China is 2.5N.cm.)
• The motor is equipped with built-in high illumination cool color LEDs of which the illumination can be up to 7000LUX. The illumination can be increased or reduced according to the practical requirements, so that the doctors can accomplish the treatment under the most suitable conditions.
• The external electric motor has four E type internationally universal connecting modes: 1:1, 16:1, 20:1, 1:5. Motor with different speed ratio can be matched with different handpiece. Thus, it has wider applications.
• The LED digital screen display of the external motor can show the speed in real time, so the speed can be controlled precisely. With the additional sensitive touch screen, you can accurately adjust the speed of the motor according to relative buttons on the control panel. So the product can be more intelligent and humanized. It can satisfy requirements of different treatment use.
• The American intelligent chip: the control box has built-in American control chip with intelligent program which is improved by several times, thus ensuring that the motor can run normally in any hostile environment. The chip also has the complete self repairing ability to ensure perfect running of the motor and components.

To order the Angle only please call 561-362-2913
