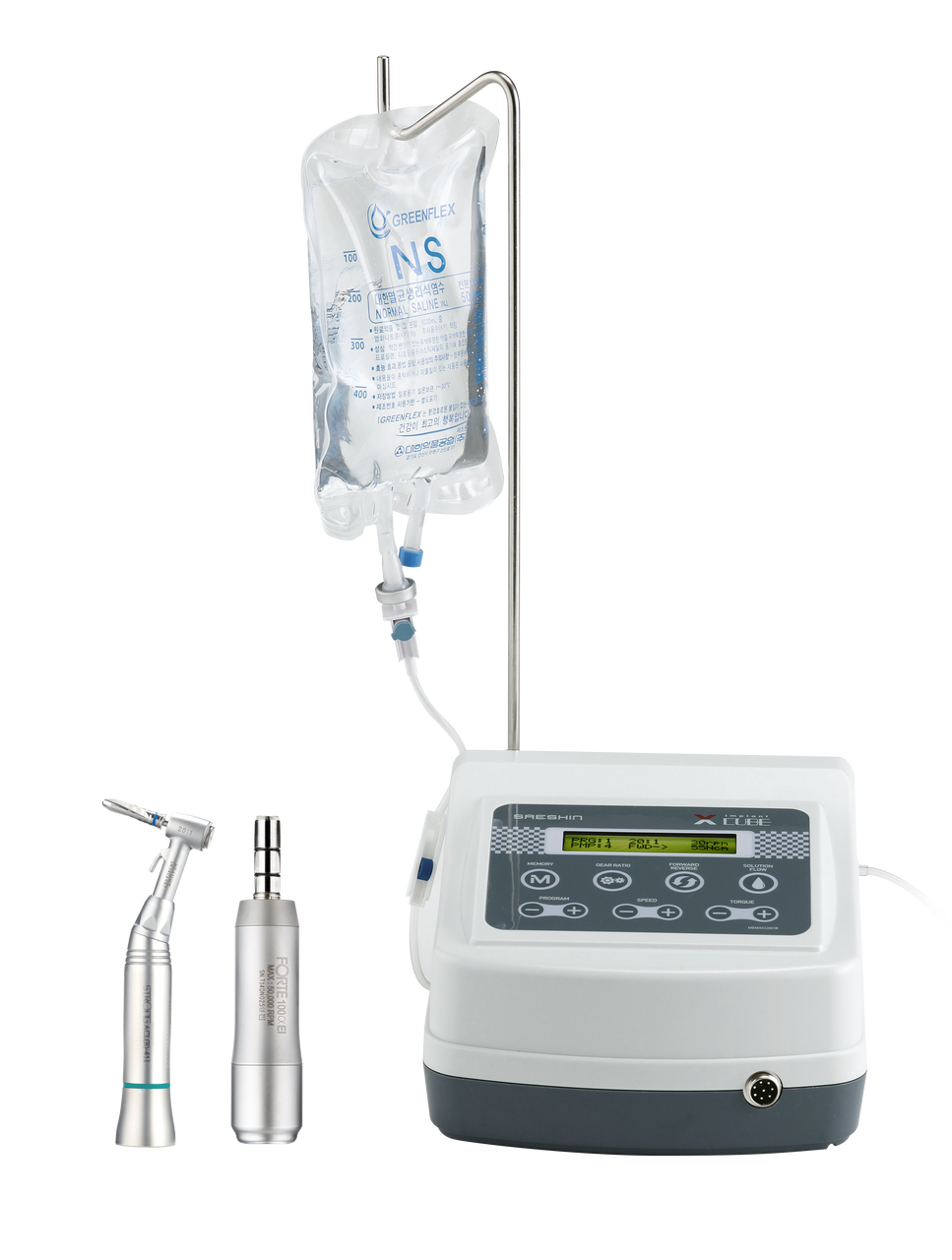

Implants Motor X Cube - standard
)
Product Description
Specifications
- BLDC motor (Speed Range 0~50,000rpm) and angle (Standard equipment 20:1) provides the optimum torque for implant surgery.
- Gear ratio : 1:5, 1:4, 1:1, 16:1, 20:1, 27:1, 32:1, 64:1
- 9 programmable memories for setting speeds, torques, rotating directions & Irrigation pumps
- Automatic overload protection function
- Actual RPM display for user's working condition.
- Motor auto-calibration function
- Ergonomic foot control pedal
- Touch display
- Self-diagnosis function
CONTRA ANGLE
| ACL-41| | ACL-42| | ACL-43| | ACL-45| | ACL(B)-41| | ACL(B)-42| | ACL(B)-43| | ACL(B)-45| | |
| Type | Lever | Button | ||||||
| Gear Ratio | 20:1 | 16:1 | 64:1 | 32:1 | 20:1 | 16:1 | 64:1 | 32:1 |
| Max. Torque | 55Ncm | 55Ncm | 65Ncm | 65Ncm | 55Ncm | 55Ncm | 65Ncm | 65Ncm |
| Max. RPM | 2,500 | 3,100 | 780 | 1,560 | 2,500 | 3,100 | 780 | 1,560 |
| Min. RPM | 30 | 40 | 10 | 20 | 30 | 40 | 10 | 20 |
| Weight | 60g | 60g | 64g | 60g | 60g | 60g | 64g | 60g |
C/B
| Input | AC100-120V, 220-240V |
| Fuse | 5A / 2A |
| Frequency | 50/60 Hz |
| Output | 230W |
| Maximum Pump | Max .75ml/min |
| Dimensions (mm) | W205 x D210 x H136 |
| Weight | 3.3kg |
